    Globe Valves

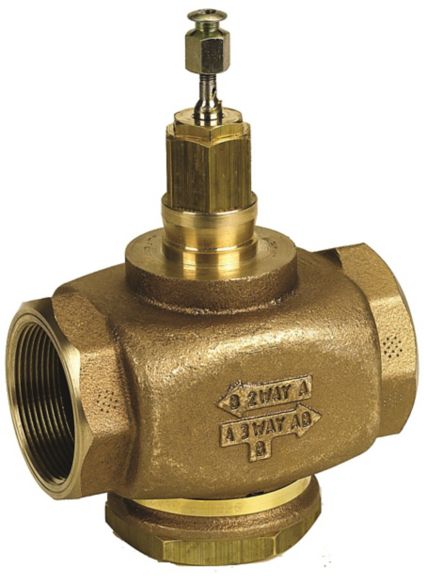

    V5011N 2-way and V5013N 3-way Globe Valves

    Discontinued

    V5011N 2-way and V5013N 3-way Globe Valves are used for 2-position or modulating control of steam, hot water, or chilled water in closed loop HVAC systems.

    Overview
    This product has been discontinued.
    Honeywell will provide product support until

    V5011N 2-way and V5013N 3-way Globe Valves are used for 2-position or modulating control of steam, hot water, or chilled water in closed loop HVAC systems.

    Features & Benefits:
    • Red brass body with NPT-threaded end connections.
    • Low seat leakage rate (‰¤0.05 percent of CV).
    • Spring-loaded, self-adjusting packing.
    • 50:1 rangeability per VDI/VDE 2173.
    • Accurate positioning to ensure state-of-the-art temperature control.
    • Directly coupled electric and pneumatic actuators for easy mounting.
    • Sizes range from 1/2 in. to 2 in.
    • Valve designs provide equal percentage flow characteristic for water and linear flow characteristic for steam.
    • Repack and rebuild kits for field servicing.
    Name
    Date
    Size
    No Resources documents tagged to this product
    An error occurred . Please try after sometime

    _blank

    Actuator_Included@actuator_included|Application@application|Control_Type@control_type|Controlled_Medium@controlled_medium|Flow_Coefficient@flow_coefficient|Leakage_Rating@leakage_rating|Maximum_Medium_Temperature@maximum_medium_temperature|Minimum_Medium_Temperature@minimum_medium_temperature|Rangeability@rangeability|Steam_Pressure_Rating@steam_pressure_rating|Valve_Body_Material@valve_body_material|Valve_Body_Pattern@valve_body_pattern|Valve_Bonnet_Size@valve_bonnet_size|Valve_Connection_Type@valve_connection_type|Valve_Flow_Characteristic@valve_flow_characteristic|Valve_Plug_Material@valve_plug_material|Valve_Pressure_Rating@valve_pressure_rating|Valve_Size_Diameter@valve_size_diameter|Valve_Stem_Material@valve_stem_material|Valve_Stroke@valve_stroke|Valve_Trim@valve_trim|Valve_Type@valve_type

    Filters

    Product Number
    Part Number
    Compare
    Description
    Leaf Category
    Thumbnail
    Add to list
    V5011N1008/U
    GLOBE VALVE - 12 IN. NPT - 2-WAY - 0.73 CV - BRASS TRIM - EQUAL PERCENTAGE
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-V5011N1008-U-left-1
    V5011N1008/U
    GLOBE VALVE - 12 IN. NPT - 2-WAY - 0.73 CV - BRASS TRIM - EQUAL PERCENTAGE
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-V5011N1008-U-left-1
    V5011N1016/U
    GLOBE VALVE - 12 IN. NPT - 2-WAY - 1.16 CV - BRASS TRIM - EQUAL PERCENTAGE
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-V5011N1008-U-left-1
    V5011N1016/U
    GLOBE VALVE - 12 IN. NPT - 2-WAY - 1.16 CV - BRASS TRIM - EQUAL PERCENTAGE
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-V5011N1008-U-left-1
    V5011N1024/U
    GLOBE VALVE - 12 IN. NPT - 2-WAY - 1.85 CV - BRASS TRIM - EQUAL PERCENTAGE
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-V5011N1008-U-left-1
    V5011N1024/U
    GLOBE VALVE - 12 IN. NPT - 2-WAY - 1.85 CV - BRASS TRIM - EQUAL PERCENTAGE
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-V5011N1008-U-left-1
    V5011N1032/U
    GLOBE VALVE - 12 IN. NPT - 2-WAY - 2.9 CV - BRASS TRIM - EQUAL PERCENTAGE
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-V5011N1008-U-left-1
    V5011N1032/U
    GLOBE VALVE - 12 IN. NPT - 2-WAY - 2.9 CV - BRASS TRIM - EQUAL PERCENTAGE
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-V5011N1008-U-left-1
    V5011N1040/U
    GLOBE VALVE - 12 IN. NPT - 2-WAY - 4.7 CV - BRASS TRIM - EQUAL PERCENTAGE
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-V5011N1008-U-left-1
    V5011N1040/U
    GLOBE VALVE - 12 IN. NPT - 2-WAY - 4.7 CV - BRASS TRIM - EQUAL PERCENTAGE
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-V5011N1008-U-left-1

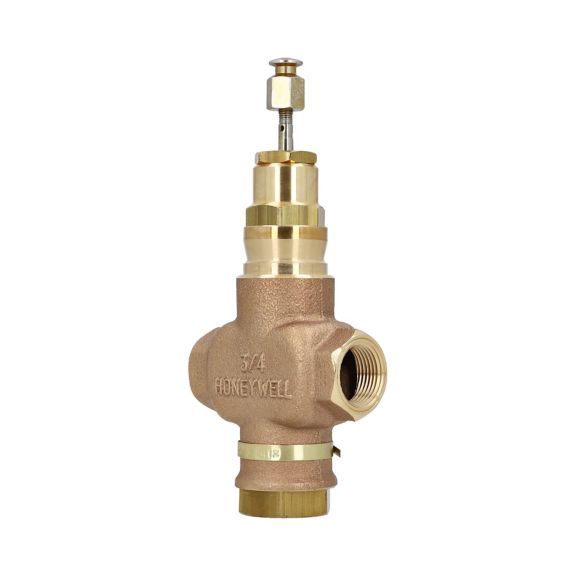

    V5011N1057/U
    GLOBE VALVE - 34 IN. NPT - 2-WAY - 7.3 CV - BRASS TRIM - EQUAL PERCENTAGE
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-V5011N1057-U-left
    V5011N1057/U
    GLOBE VALVE - 34 IN. NPT - 2-WAY - 7.3 CV - BRASS TRIM - EQUAL PERCENTAGE
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-V5011N1057-U-left
    V5011N1065/U
    GLOBE VALVE - 1 IN. NPT - 2-WAY - 11.7 CV - BRASS TRIM - EQUAL PERCENTAGE
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-V5011N1065-U-left-1
    V5011N1065/U
    GLOBE VALVE - 1 IN. NPT - 2-WAY - 11.7 CV - BRASS TRIM - EQUAL PERCENTAGE
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-V5011N1065-U-left-1
    V5011N1073/U
    GLOBE VALVE - 1-14 IN. NPT - 2-WAY - 18.7 CV - BRASS TRIM - EQUAL PERCENTAGE
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-V5011N1073-U-left
    V5011N1073/U
    GLOBE VALVE - 1-14 IN. NPT - 2-WAY - 18.7 CV - BRASS TRIM - EQUAL PERCENTAGE
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-V5011N1073-U-left
    V5011N1081/U
    GLOBE VALVE - 1-12 IN. NPT - 2-WAY - 29.3 CV - BRASS TRIM - EQUAL PERCENTAGE
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-V5011N1081-U-left-1
    V5011N1081/U
    GLOBE VALVE - 1-12 IN. NPT - 2-WAY - 29.3 CV - BRASS TRIM - EQUAL PERCENTAGE
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-V5011N1081-U-left-1

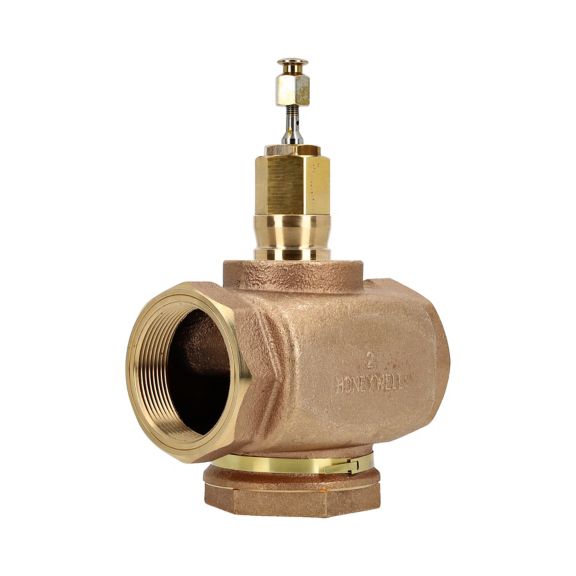

    V5011N1099/U
    GLOBE VALVE - 2 IN. NPT - 2-WAY - 46.8 CV - BRASS TRIM - EQUAL PERCENTAGE
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-V5011N1099-U-left-1
    V5011N1099/U
    GLOBE VALVE - 2 IN. NPT - 2-WAY - 46.8 CV - BRASS TRIM - EQUAL PERCENTAGE
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-V5011N1099-U-left-1
