Globe Valves

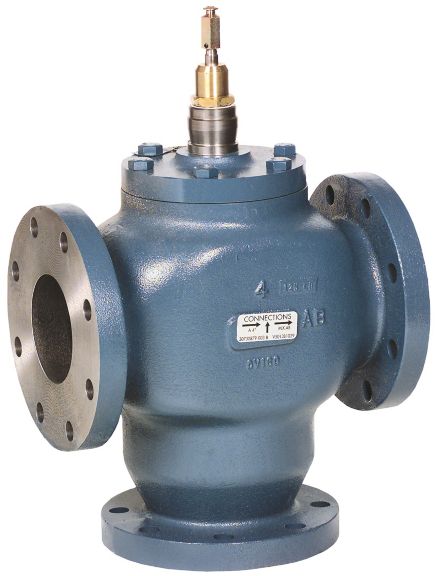

V5011A/B 2-Way and V5013B/C 3-Way Flanged Globe Valves
Discontinued
V5011A/B 2-Way and V5013B/C 3-Way Flanged Globe Valves are used for control of steam, hot water, or chilled water in closed loop HVAC systems.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
This product has been discontinued.
Honeywell will provide product support until
V5011A/B 2-Way and V5013B/C 3-Way Flanged Globe Valves are used for proportional control of hot or chilled water and glycol solutions (to 50 percent concentration) and for two-position control of low pressure steam (2-way only) in closed loop HVAC systems.Features & Benefits:
- Sizes range from 2-1/2 to 6 inches.
- Stainless steel stem with serviceable Teflon packing.
- Valves utilize ML Series direct mounting valve actuators, Q5020/Q5024 linkages with Direct Coupled Actuators, or Pneumatic Valve Actuators to operate the valve.
- Equal Percentage flow characteristic on 2-way valves.
- Mixing and Diverting 3-way valves offer constant total flow through full plug travel.
- Class IV (0.01% of Cv) Leakage Rating.
Name
Date
Size
_blank
Actuator_Included@actuator_included|Application@application|Control_Type@control_type|Controlled_Medium@controlled_medium|Flow_Coefficient@flow_coefficient|For_Use_With@for_use_with|Maximum_Medium_Temperature@maximum_medium_temperature|Minimum_Medium_Temperature@minimum_medium_temperature|Valve_Body_Material@valve_body_material|Valve_Body_Pattern@valve_body_pattern|Valve_Bonnet_Size@valve_bonnet_size|Valve_Connection_Type@valve_connection_type|Valve_Flow_Characteristic@valve_flow_characteristic|Valve_Plug_Material@valve_plug_material|Valve_Pressure_Rating@valve_pressure_rating|Valve_Size_Diameter@valve_size_diameter|Valve_Stem_Material@valve_stem_material|Valve_Stroke@valve_stroke|Valve_Trim@valve_trim|Valve_Type@valve_type
Please sign in to view part numbers available for purchase based on your account Sign In
Filters
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Compare
Description
Leaf Category
Thumbnail
Add to list
V5011A1734/U
GLOBE VALVE - 2-12 IN. ANSI 125 FLANGED - 2-WAY - 63 CV - BRASS TRIM - EQUAL PERCENTAGE
https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-V5011A1734-U-left
V5011A1734/U
GLOBE VALVE - 2-12 IN. ANSI 125 FLANGED - 2-WAY - 63 CV - BRASS TRIM - EQUAL PERCENTAGE
https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-V5011A1734-U-left

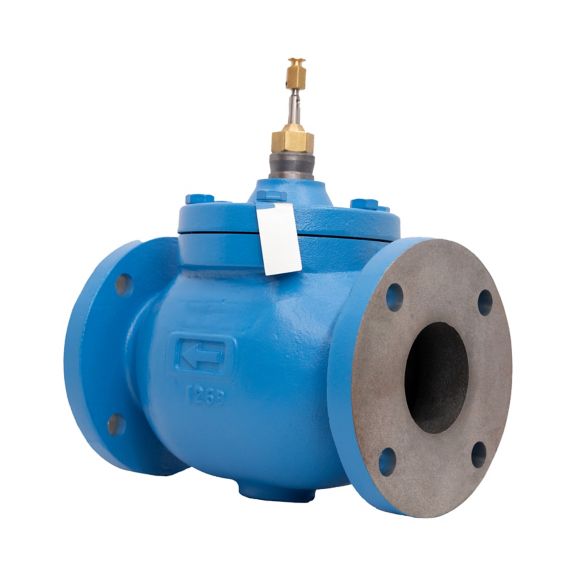

V5011A1767/U
GLOBE VALVE - 3 IN. ANSI 125 FLANGED - 2-WAY - 100 CV - BRASS TRIM - EQUAL PERCENTAGE
https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-V5011A1767-U-left
V5011A1767/U
GLOBE VALVE - 3 IN. ANSI 125 FLANGED - 2-WAY - 100 CV - BRASS TRIM - EQUAL PERCENTAGE
https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-V5011A1767-U-left

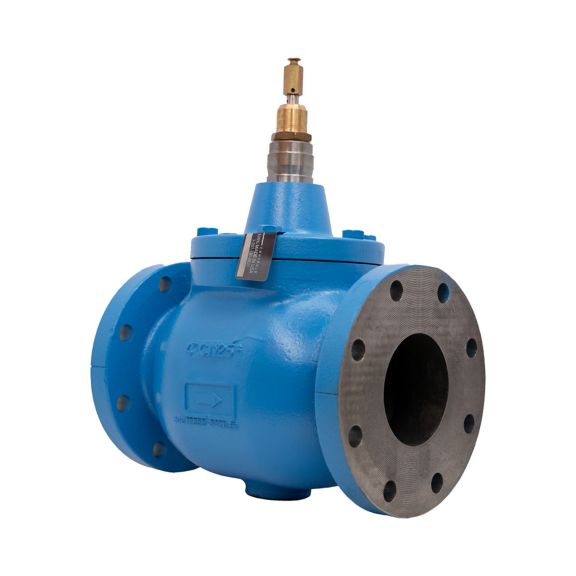

V5011A1858/U
GLOBE VALVE - 4 IN. ANSI 125 FLANGED - 2-WAY - 160 CV - BRASS TRIM - EQUAL PERCENTAGE
https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-V5011A1858-U-left
V5011A1858/U
GLOBE VALVE - 4 IN. ANSI 125 FLANGED - 2-WAY - 160 CV - BRASS TRIM - EQUAL PERCENTAGE
https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-V5011A1858-U-left

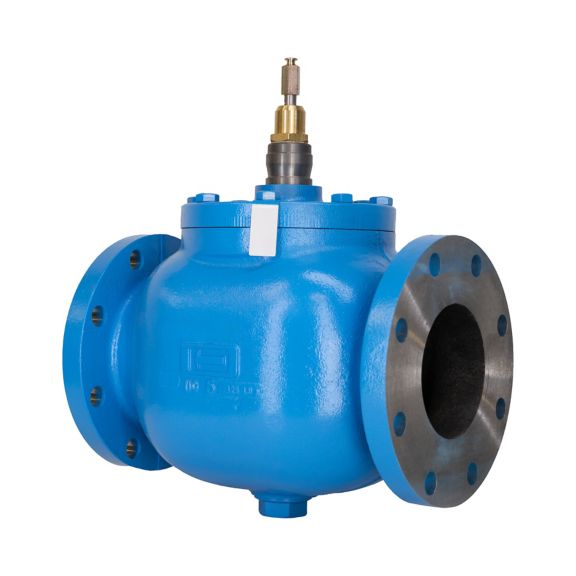

V5011A1882/U
GLOBE VALVE - 5 IN. ANSI 125 FLANGED - 2-WAY - 250 CV - BRASS TRIM - EQUAL PERCENTAGE
https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-V5011A1882-U-left
V5011A1882/U
GLOBE VALVE - 5 IN. ANSI 125 FLANGED - 2-WAY - 250 CV - BRASS TRIM - EQUAL PERCENTAGE
https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-V5011A1882-U-left
V5011A1916/U
GLOBE VALVE - 6 IN. ANSI 125 FLANGED - 2-WAY - 360 CV - BRASS TRIM - EQUAL PERCENTAGE
https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-V5011A1916-U-left
V5011A1916/U
GLOBE VALVE - 6 IN. ANSI 125 FLANGED - 2-WAY - 360 CV - BRASS TRIM - EQUAL PERCENTAGE
https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-V5011A1916-U-left
V5011B1013/U
GLOBE VALVE - 4 IN. ANSI 125 FLANGED - 2-WAY - 160 CV - BRASS TRIM - EQUAL PERCENTAGE - REVERSE ACTING
https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-V5011A1858-U-left
V5011B1013/U
GLOBE VALVE - 4 IN. ANSI 125 FLANGED - 2-WAY - 160 CV - BRASS TRIM - EQUAL PERCENTAGE - REVERSE ACTING
https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-V5011A1858-U-left
V5011B1047/U
GLOBE VALVE - 5 IN. ANSI 125 FLANGED - 2-WAY - 250 CV - BRASS TRIM - EQUAL PERCENTAGE - REVERSE ACTING
https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-V5011A1882-U-left
V5011B1047/U
GLOBE VALVE - 5 IN. ANSI 125 FLANGED - 2-WAY - 250 CV - BRASS TRIM - EQUAL PERCENTAGE - REVERSE ACTING
https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-V5011A1882-U-left
V5011B1070/U
GLOBE VALVE - 6 IN. ANSI 125 FLANGED - 2-WAY - 360 CV - BRASS TRIM - EQUAL PERCENTAGE - REVERSE ACTING
https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-V5011A1916-U-left
V5011B1070/U
GLOBE VALVE - 6 IN. ANSI 125 FLANGED - 2-WAY - 360 CV - BRASS TRIM - EQUAL PERCENTAGE - REVERSE ACTING
https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-V5011A1916-U-left
V5013B1003/U
GLOBE VALVE - 2-12 IN. ANSI 125 FLANGED - 3-WAY MIXING - 63 CV - BRASS TRIM - LINEAR FLOW
https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-V5013B1003-U-left
V5013B1003/U
GLOBE VALVE - 2-12 IN. ANSI 125 FLANGED - 3-WAY MIXING - 63 CV - BRASS TRIM - LINEAR FLOW
https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-V5013B1003-U-left
V5013B1011/U
GLOBE VALVE - 3 IN. ANSI 125 FLANGED - 3-WAY MIXING - 100 CV - BRASS TRIM - LINEAR FLOW
https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-V5013B1011-U-left
V5013B1011/U
GLOBE VALVE - 3 IN. ANSI 125 FLANGED - 3-WAY MIXING - 100 CV - BRASS TRIM - LINEAR FLOW
https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-V5013B1011-U-left
