    Pressure Switches & Sensors

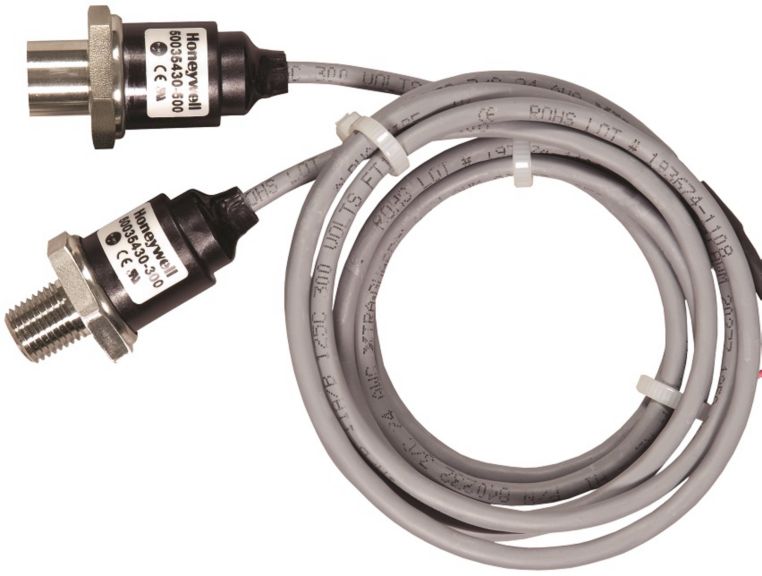

    MLH Series Gauge Pressure Sensors

    The MLH Series is a two-wire 4-20mA gauge pressure sensor.

    Overview

    The MLH Series is a two-wire 4-20mA gauge pressure sensor. This digitally compensated sensor offers an unparalleled value and performance combination, making it the ideal pressure sensing solution for demanding applications. The MLH series is available in pressure ranges up to 1000 psi.

    Features & Benefits:
    • Available in 50, 150, 300, 500 and 1000 psi
    • All metal wetted parts for use in a wide variety of fluid applications
    • Suitable for use with refrigerants
    • No internal elastomeric seals mean no o-ring compatibility issues
    • 3 meter cable standard
    • Reverse polarity and overvoltage protection—protects against reversed excitation
    • Less than 2 ms response time provides accurate, high speed measurement
    • Select models available with 1/4-in. SAE female Schrader connection with valve depressor
    Certifications:
    • Exceeds CE heavy industrial EMC for use in areas of high RFI/EMI
    • MIL- STD- 810C. Figure 514.2-5, Curve AK, Table 514.2-V, Random Vibration Test [overall g rms = 20.7 min.]
    Data Sheet
    Name
    Description
    File Size
    Date
    Size
    Product Data
    application/pdf 515.86 KB
    6/28/2023
    515.86 KB
    Name
    Description
    File Size
    Date
    Size
    Product Data
    application/pdf 515.86 KB
    6/28/2023
    515.86 KB
    Name
    Description
    File Size
    Date
    Size
    Product Data
    515.86 KB
    6/28/2023
    Product Number
    Part Number
    Description
    Leaf Category
    Thumbnail
    Add to list
    MLH01KPSCDJ1241
    Gauge Pressure Sensor, 0-1000 psig, 4-20 mA, 14 in. SAE female Schraeder
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-50035430-500-c1-6
    MLH01KPSCDJ1241
    Gauge Pressure Sensor, 0-1000 psig, 4-20 mA, 14 in. SAE female Schraeder
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-50035430-500-c1-6
    MLH050PSCDJ1235
    Gauge Pressure Sensor, 0-50 psig, 4-20 mA, 14 in. NPT
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-50035430-500-c1-6
    MLH050PSCDJ1235
    Gauge Pressure Sensor, 0-50 psig, 4-20 mA, 14 in. NPT
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-50035430-500-c1-6
    MLH150PSCDJ1236
    Gauge Pressure Sensor, 0-150 psig, 4-20 mA, 14 in. NPT
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-50035430-500-c1-6
    MLH150PSCDJ1236
    Gauge Pressure Sensor, 0-150 psig, 4-20 mA, 14 in. NPT
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-50035430-500-c1-6
    MLH500PSCDJ1240
    Gauge Pressure Sensor, 0-500 psig, 4-20 mA, 14 in. SAE female Schraeder
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-50035430-500-c1-6
    MLH500PSCDJ1240
    Gauge Pressure Sensor, 0-500 psig, 4-20 mA, 14 in. SAE female Schraeder
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-50035430-500-c1-6
