Fire Alarm Control Panels

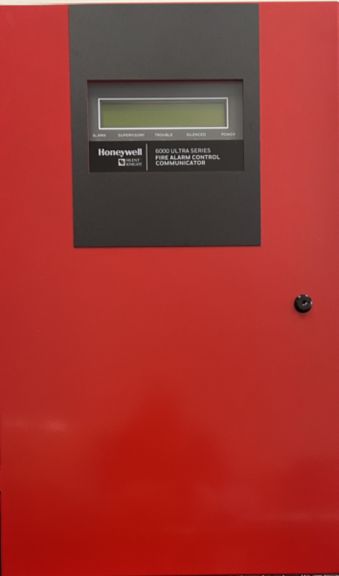

6808U ULTRA SERIES
The 6808U features a built-in SLC circuit, eight Flexput® circuits, dual-line DACT,powerful software features, and connectivity for up to 17 panels.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
The 6808U is the latest intelligent addressable FACP (Fire Alarm Control Panel) from Silent Knight and is a direct replacement for the 6808/5808 FACP. The 6808U has one SLC (signaling line circuit) loop for connecting addressable detectors, which can support 159 System Sensor® SK sensors and 159 SK modules or 127 Hochiki® SD devices per loop
Features & Benefits:
Features & Benefits:
- Complies with UL 864 10th Edition
- Built-in support for up to 159 IDP/SK detectors and 159 SK modules or 127 SD SLC devices
- Eight Flexput circuits (3 amps max) for NAC outputs or auxiliary power
- Selectable strobe synchronization for Amseco®, System Sensor, Wheelock®, and Gentex® devices
- 999 software zones and 999 output groups for flexible design options
- Built-in dual phone line, digital alarm communicator/ transmitter (DACT) with IP and optional cellular technologies
- Four line LCD display with 20 characters per line
- Built-in USB interface for quick and easy programming
- JumpStart® auto programming reduces installation time
- 23 preset notification cadence patterns (including ANSI® 3.41)
- Allows up to 20 SBUS devices
- Two programmable relays and one fixed trouble relay
- Convenient field-upgradeable firmware
- Supports up to four SWIFT wireless gateways which can foster up to 49 wireless devices each
- Connectivity for up to 17 sites
- Network card allows copper network connection with a multi-mode or singlemode fiber connection
- Programmable date setting for Daylight Savings Time
- History file with 1,000 event capacity
- Can be surface or flush-mounted
