Relay Modules

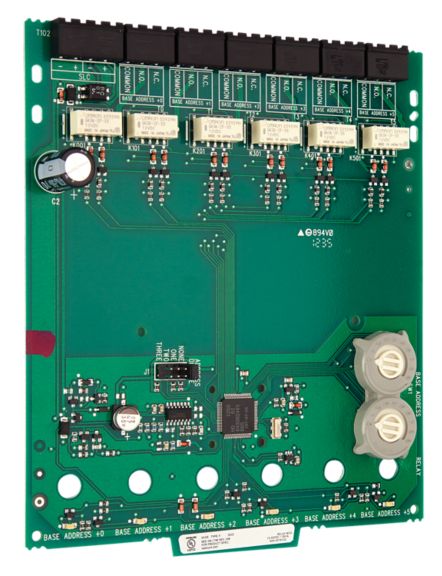

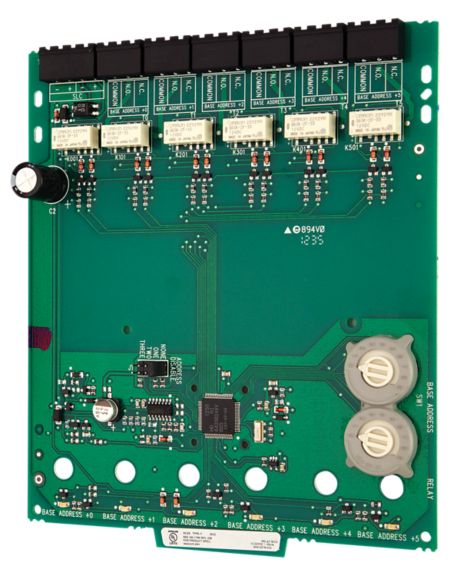

SK-RELAY-6 Intelligent Relay Control Module

Addressable 6-relay control modules are designed for use with Honeywell Silent Knight® Series fire alarm control panels (FACPs). They come equipped with six Form C relays and allow the FACP to switch discrete contacts through a code command.

Addressable 6-relay control modules are designed for use with HoneywellSilent Knight®Series fire alarm control panels (FACPs). They come equipped with six Form C relays and allow the Silent Knight FACP to switch discrete contacts through a code command. The modules are intended to be used with virtually any normally open (NO) or normally closed (NC) application. Each of the addressable 6-relay control modules are programmed with a unique signaling line circuit (SLC) loop address. When an event occurs that controls the addressable 6-relay control modules the relays are triggered by the FACP.

Features & Benefits:
  • Removable 12 to 18 AWG plug-in terminal blocks
  • Relay programming is completely flexible and can be mapped to zone conditions
  • Individual LED for each relay contact
  • Two module mounting in the IDP-ACB cabinet
  • Ability to disable up to three unused modules
  • Rotary address switches allow for fast installation
  • Mounting hardware included
  • Six Form C contacts
Certifications:
  • UL Listed

Others

  • Brand
    • Silent Knight
  • Mounting Type
    • Cabinet-Mount
  • Product Type
    • Relay Module

Others

  • Brand
    • Silent Knight
  • Mounting Type
    • Cabinet-Mount
  • Product Type
    • Relay Module
  • Brand : Silent Knight
  • Mounting Type : Cabinet-Mount
  • Product Type : Relay Module
