Heat Detectors

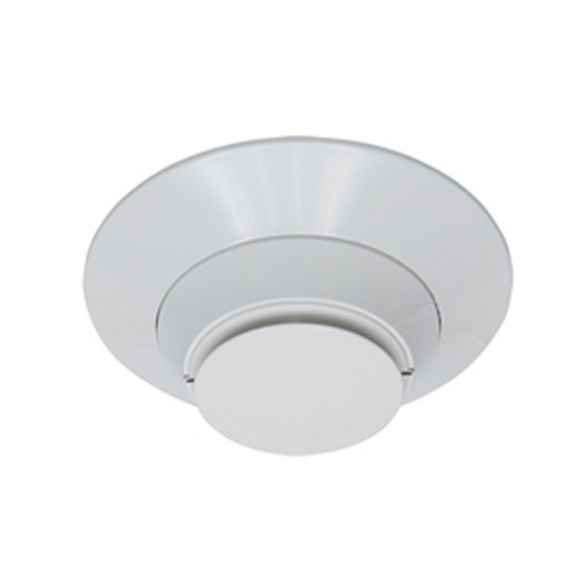

Velocity® Series 3 Thermal Detector

Velocity® Series 3 thermal detectors are intelligent detectors with integral communication that provides locations for alarms and selective maintenance.

Overview

The Gamewell-FCI, Velocity® Series 3 intelligent thermal detectors with integral communication provide point location for alarm communication and selective maintenance. Designed in a modern bright white color, the Velocity Series 3 is aesthetically pleasing for today's contemporary buildings.

The Velocity Series 3 heat detectors are intelligent addressable detectors with point ID capability that enable each detector address to be set with rotary address switches providing exact device locations. The thermal detector continually monitors the detected temperature and reports it to the fire alarm control panel. The modern design and expanded color options support a variety of contemporary aesthetic demands. In addition, each detector is constructed for exceptional installation and maintenance efficiency.

Features & Benefits:
  • Designed to comply with UL268 7th edition
  • Modern profile for improved aesthetics
  • Visual rotary, decimal switch addressing (01-159)
  • Built-in functional test switch activated by an external magnet
  • Dual bicolor LEDs flash green whenever the sensor is addressed, and light steady red on alarm
  • Optional relay, isolator, or sounder bases
  • Low standby current
  • Analog addressable communication
  • Stable communication technique with noise immunity
  • Optional remote, single-gang LED Indicator (RA100Z)
  • Compatible with Gamewell-FCI analog addressable panels
Certifications:
  • UL: S2332
  • FM: 3023594
  • MEA-FDNY: 219-02-E Vol. VI
  • CSFM: 7270-1703-0502
  • ISO 9001 Certification
Specifications

Others

  • Trigger Temperature
    • 135 degree Fahrenheit
  • Standby Current
    • 200 µA @ 24 voltage direct current
  • Fixed Temperature Setpoint
    • 135 degree Fahrenheit
  • Minimum Operating Ambient Temperature
    • -20 degree Celsius
    • -4 degree Fahrenheit
  • Nominal Voltage
    • 15 voltage direct current
    • 32 voltage direct current
  • Conventional or Addressable
    • Intelligent
  • Brand
    • Gamewell-FCI
  • Maximum Operating Humidity
    • 93

Others

  • Trigger Temperature
    • 135 degree Fahrenheit
  • Standby Current
    • 200 µA @ 24 voltage direct current
  • Fixed Temperature Setpoint
    • 135 degree Fahrenheit
  • Minimum Operating Ambient Temperature
    • -20 degree Celsius
    • -4 degree Fahrenheit
  • Nominal Voltage
    • 15 voltage direct current
    • 32 voltage direct current
  • Conventional or Addressable
    • Intelligent
  • Brand
    • Gamewell-FCI
  • Maximum Operating Humidity
    • 93
  • Trigger Temperature : 135 degree Fahrenheit
  • Standby Current : 200 µA @ 24 voltage direct current
  • Fixed Temperature Setpoint : 135 degree Fahrenheit
  • Minimum Operating Ambient Temperature : -20 degree Celsius|-4 degree Fahrenheit
  • Nominal Voltage : 15 voltage direct current|32 voltage direct current
  • Conventional or Addressable : Intelligent
  • Brand : Gamewell-FCI
  • Maximum Operating Humidity : 93
Sort
Others
Document Title
Document Type
File Size
Engineering Specifications
0.08 MB
Engineering Specifications
0.35 MB
Engineering Specifications
0.08 MB
Engineering Specifications
0.35 MB
Engineering Specifications
0.08 MB
Engineering Specifications
0.41 MB
Data Sheet
Document Title
Document Type
File Size
Catalog
Document Title
Document Type
File Size
Document Title
Document Type
File Size
Product Number
SKU
Description
alt
ATD-L3
Thermal Heat Detector, 135F Fixed, Bright White, Velocity
alt
ATD-L3-IV
Thermal Heat Detector, 135F Fixed, Ivory
alt
ATD-L3H
Thermal Heat Detector, 190F High Temp, Bright White, Velocity
alt
ATD-L3H-IV
Thermal Heat Detector, 190F Fixed, Ivory
alt
ATD-L3R
Thermal Heat Detector, 135F Rate of Rise, Bright White, Velocity
alt
ATD-L3R-IV
Thermal Heat Detector, 135F Rate of Rise, Ivory
SKU
Description
alt
ATD-L3
Thermal Heat Detector, 135F Fixed, Bright White, Velocity
alt
ATD-L3-IV
Thermal Heat Detector, 135F Fixed, Ivory
alt
ATD-L3H
Thermal Heat Detector, 190F High Temp, Bright White, Velocity
alt
ATD-L3H-IV
Thermal Heat Detector, 190F Fixed, Ivory
alt
ATD-L3R
Thermal Heat Detector, 135F Rate of Rise, Bright White, Velocity
alt
ATD-L3R-IV
Thermal Heat Detector, 135F Rate of Rise, Ivory
