Power Supplies

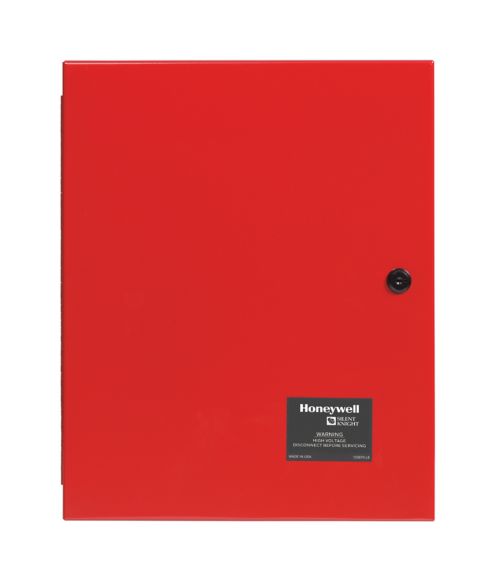

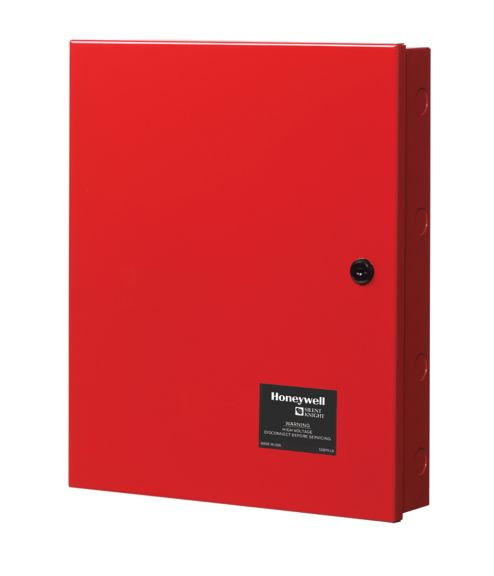

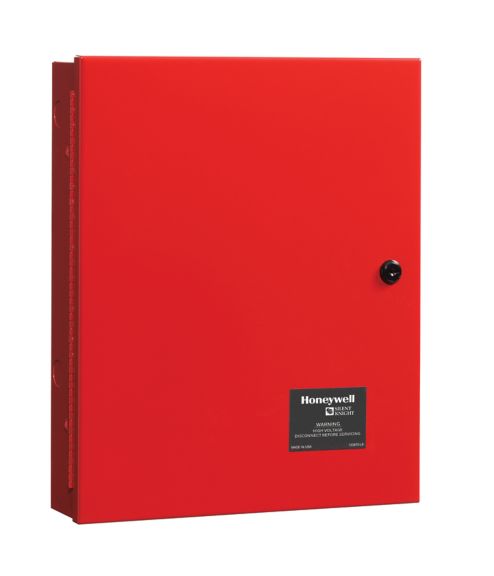

Model 5496 Intelligent Power Module
Discontinued
Model 5496 intelligent power modules are cost-effective power supplies, delivering 6A of notification appliance circuit power and built-in synchronization for appliances from System Sensor®, Gentex®, AMSECO®, and Wheelock™.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
This product has been discontinued.
Honeywell will provide product support until
Model 5496 intelligent power modules are cost-effective power supplies, delivering6A of notification appliance circuit power and built-in synchronization for appliances from System Sensor®, Gentex®, AMSECO®, and Cooper Wheelock. Their advanced microprocessor design is years ahead of the competition. Its switch mode power supply design is up to 50% more efficient than competitive linear-mode power supplies.Features & Benefits:
- UL Listed for 6 amps of notification power
- Power supply’s advanced switch mode design reduces damaging heat and manages power up to 50% more efficiently than other systems
- 24 VDC filtered output voltage NACs are programmable as notification appliance circuits, or as auxiliary power to be used as constant, resettable, or door holder power
- 3 amps per output circuit, Ground fault detector, CSFM approve Built-in synchronization for appliances from Gentex, AMSECO, System Sensor, and Wheelock
- Four power-limited notification outputs; 2 Class A or 4 Class B, or 1 Class A and 2 Class B Communicates to the FACP via 4-wire SBUS (wire runs up to 6000 ft), AC loss delay option shuts off power to non-essential high current accessories like magnetic door holders
- CSFM Approved
- NFPA 72
- UL Listed
- FM Approved
- City of NY: 429-90-E Vol XIV
Name
Date
Size
_blank
Amperage@amperage|Input_Voltage@input_voltage|Maximum_Operating_Ambient_Temperature@maximum_operating_ambient_temperature|Minimum_Operating_Ambient_Temperature@minimum_operating_ambient_temperature
Please sign in to view part numbers available for purchase based on your account Sign In
Filters
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Compare
Description
Leaf Category
Thumbnail
Add to list
005496
Intelligent Remote Power Module
https://honeywell.scene7.com/is/image/Honeywell65/HBT-Fire-5496-STRAIGHT-HiRes
005496
Intelligent Remote Power Module
https://honeywell.scene7.com/is/image/Honeywell65/HBT-Fire-5496-STRAIGHT-HiRes
054960
Control Board, 5496
https://honeywell.scene7.com/is/image/Honeywell65/hbt-icon-parts-and-accessories-primaryimage
054960
Control Board, 5496
https://honeywell.scene7.com/is/image/Honeywell65/hbt-icon-parts-and-accessories-primaryimage
